Manufacture of phosphor in glass utilizing waste glass for auto illumination application

Round waste glass that might not be made use of for their initial functions as a result of crack, failing, or scrapes were ground in rugged and also great procedures to produce glass frit. The ready glass frit from the waste glass was put on make PiGs by integrating it with phosphor. Number 2 reveals morphology adjustments of waste glass in the grinding procedure.

Number 2
figure 2

Photos of glass for every action.

To validate the reproducibility and also return of the grinding procedure, 6 samplings produced under the very same problem were contrasted. When 300 g of waste glass was placed in the grinding procedure under 500 rpm for 20 minutes, 185 g of glass frits was acquired with a typical return of 62%. Precise worths are presented in Table 1.

Table 1 Operating problems of great grinding procedure (samplings 1 to 6).

To examine bit dimension circulation pattern of produced glass frit, bit dimension evaluation (PSA) was carried out. Number 3a–f reveal a comparable chart pattern and also imply bit quantity at D (10), D (50) and also D (90). Ordinary quantities are displayed as 2.241 μm for D (10), 12.07 μm for D (50) and also 36.275 µm for D (90). Those worths had an optimum mistake of 2.46%, 4.08% and also 3.71%, specifically. Such PSA result indicates that the glass frit manufacture procedure for reusing the waste glass has integrity to be used in an useful application.

Number 3
figure 3

PSA outcomes of glass frit under the very same problem. (af) Samplings 1 to 6.

SEM photo of glass frit in Fig. 4a aesthetically reveals an outcome regular with PSA outcomes. Fragments with a dimension of around 12 μm comparable to dimension of D (50) mostly inhabited the quantity, with several smaller sized bits inhabiting the staying quantity. To determine the specific make-up of waste glass, EDS evaluation was carried out, as displayed in Fig. 4b–f. Outcomes disclosed that Si, Ca, Na, O, K were discovered as major elements. Those are generally made use of in soda-lime glass which is considered as a re-usable glass. The soda-lime glass has both salt and also calcium and also is popular as one of the most typically made use of glass in our day-to-day live. Such a glass product might differ considerably in glass change temperature level and also passage according to salt oxide and also calcium oxide web content. For that reason, added analyzes were needed to develop the PiG production procedure and also verify that it is an ideal product.

Number 4
figure 4

(a) SEM pictures of produced glass frit. (bf) EDS mapping pictures.

In order to locate more particular and also sintering temperature level, Differential Thermal Evaluation (DTA) was carried out. As displayed in Fig. 5a, an apparent endo-thermal at a temperature level of 630 °C was observed. This single height existed for the entire temperature level variety. This outcome indicates that the temperature level at this height is thawing temperature level (Tm). Based upon the evaluation, the sintering temperature level was established, and also PiGs were produced. Number 5b reveals outcomes of passage evaluation of the glass disk produced by thawing the ready glass frit. As displayed in the chart, the glass disk executed a superb passage of over 85% for the entire wavelength over UV area of 320 nm. This outcome additionally sustains the opportunity of glass recycling and also application for PiG manufacture.

Number 5
figure 5

(a) DSC evaluation outcome of glass frit. (b) Passage of produced glass disk.

To produce a PiG utilizing waste glass, we chose YAG: Ce3+ as a yellow phosphor and also Ca-α-SiAlON as a brownish-yellow phosphor. Number 6 reveals the outcomes of examining the photoluminescence features of both chosen phosphors and also PiGs prepared utilizing these phosphors. As displayed in Fig. 6a,b, both phosphors delighted with a wavelength of 450 nm in heaven area (see excitation ranges left contours), and also each phosphor additionally revealed exhaust bands focused at concerning 530 nm and also 600 nm by the excitation resource. These exhaust ranges are credited to the 5d1–4f change of Ce3+ (see Fig. 6a, best contour) and also the 4f65d–4f7 change of Eu2+ (Fig. 6b, best contour), specifically26,27. Additionally, the reality that there is no distinction from the special optical buildings of the powder when made with PiG verifies that the phosphor does not respond with the glass make-up, and also the framework does not collapse throughout the sintering procedure28.

Number 6
figure 6

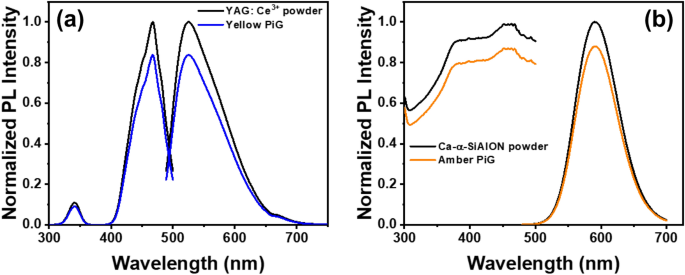

PL evaluation of (a) YAG: Ce3+ powder and also yellow PiG and also (b) Ca-α-SiAlON powder and also brownish-yellow PiG.

PiGs were made utilizing waste glass with chosen phosphors. XRD pattern evaluation was carried out to review whether the framework of the phosphor was damaged as a result of inner response throughout the production procedure. In XRD results displayed in Fig. 7, the wide diffraction for an amorphous glass of the soda-lime glass was discovered in the series of 25°–50° for both PiGs, and also XRD powder diffraction patterns of phosphors were plainly disclosed. This outcome recommended that the phosphor keeps the framework well without breaking down inside the glass. Additionally, the outcomes of factor EDS evaluation to validate that the phosphor is well kept inside the glass product are displayed in Fig. 8a,b. As an outcome of assessing the make-up of the part assumed to be the phosphor bits, each phosphor element was precisely discovered.

Number 7
figure 7

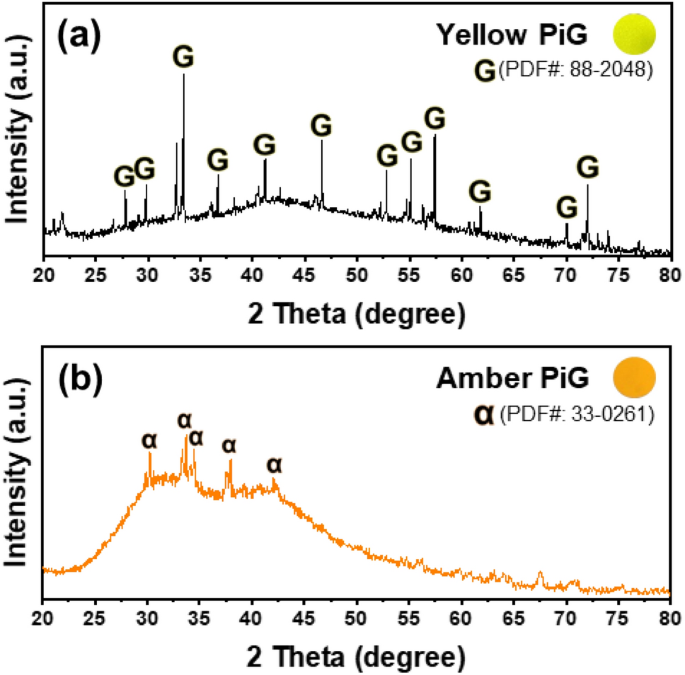

XRD patterns of produced yellow (a) and also brownish-yellow (b) PiGs.

Number 8
figure 8

Factor EDS outcomes of yellow and also brownish-yellow PiGs, specifically.

In order to evaluate optical features of PiGs effectively made utilizing waste glass, an excellent plan examination was carried out. Number 9a reveals a schematic layout of auto illumination applications that can be used when modularized with a blue LED-based light converter. Number 9b,c reveal outcomes of optical buildings gauged in the incorporating ball by product packaging PiGs made in dimension of 1.375 mm2 with a blue LED chip. Yellow and also brownish-yellow PiGs had luminescent change worths of 117 lm and also 73 lm under 350 mA driving present, specifically. As displayed in Fig. 9d,e, the Blue-Yellow LED tool understood shade collaborates that matched white LED criteria and also the Blue-Amber LED tool understood shade collaborates that might be put on side turn lights.

Number 9
figure 9

(a) Application instance of produced PiGs (b), (d) Plan examination outcome of Yellow PiG (c), (e) Plan examination outcome of Brownish-yellow PiG.
